Jetwave Explorer G2D Premium Trailer 3150-4060psi

Pressure Rating (PSI / Bar):
3,150 PSI (210 Bar) operating pressure – HW3000-15DG2 Premium Trailer
4,060 PSI (280 Bar) operating pressure – HW4000-13DG2 Premium Trailer

Flow Rate (L/min):
15 L/min – HW3000-15DG2 Premium Trailer
13 L/min – HW4000-13DG2 Premium Trailer

Power Type:
Diesel – Kohler KD15 440 engine

Water Temperature:
Cold water

Motor Brand and Type:
Kohler KD15 440 industrial diesel engine

Pump Type:
Industrial-grade triplex plunger pump designed for professional continuous-duty operation

Included Accessories:
Explorer G2D pressure cleaner unit
JW J5500K professional trigger gun
Professional lance assembly
Apache A-Frame high-pressure hose reel
30 m 3/8” non-marking double wire braid hose with M22 couplings

Water Supply System:
1000 L TTI polyethylene onboard water tank
UV stabilised construction
High-flow inlet float valve with automatic shut-off
Low-level water cut-out protection

Application Suitability:
Designed for portable industrial pressure cleaning in construction, earthmoving, mining, hire fleets, transport, and heavy-duty commercial washdown applications.

Duty Cycle / Usage Class:
Industrial professional use

Trailer Construction:
Australian-made dual axle trailer system
Heavy-duty welded RHS steel construction
3 mm mild steel checker plate floor
Dark grey enamel finish
Additional bracing and reinforced A-frame drawbar

Suspension & Running Gear:
Dual axle trailer for increased strength and stability
7-leaf slipper suspension
14” heavy-duty wheels and tyres
Mechanical disc brakes and calipers with override braking system
45 mm premium-grade steel axle system

Tow System:
50 mm ball coupling
10” heavy-duty jockey wheel
ADR-approved LED multi-volt lighting system
7-pin flat trailer plug

Hose Reel System:
Apache A-Frame high-pressure hose reel
Capacity for up to 100 m of 3/8” high-pressure hose
Capacity for up to 30 m of ¾” low-pressure hose

Optional Upgrades:
Apache A-Frame low-pressure reel with 30 m hose
1500 mm alloy lockable toolbox
Additional 30 m high-pressure hose (total 60 m)
Additional 70 m high-pressure hose (total 100 m)
Apache hose reel guides
12V rewind and variable speed controller kit

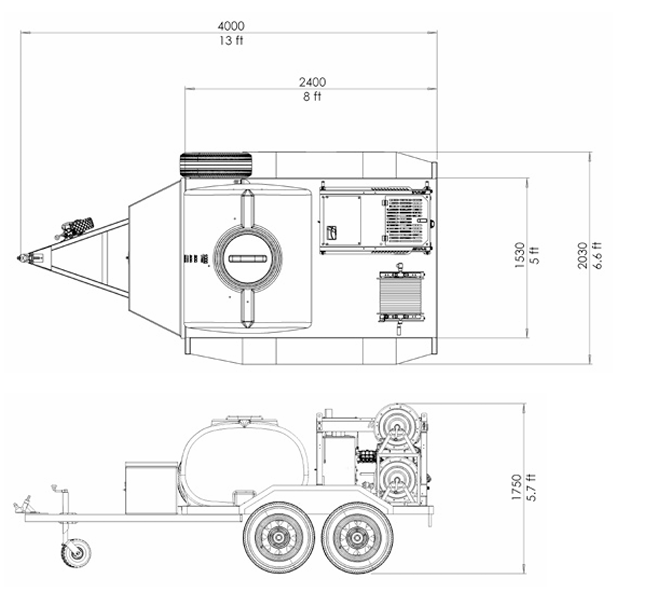

Dimensions (L x W x H) (Millimetre):
4000 x 2030 x 1650 mm

Weight (kg):
900 kg dry
1850 kg wet

Trailer Rating:
1990 kg

Safety Features:
Low-level water cut-out protection
Mechanical override braking system
ADR-approved LED lighting
Heavy-duty Australian-made trailer construction
Industrial-grade hose reel and plumbing systems

Warranty & Service Support:
1-Year trailer warranty
2-Year machine warranty
15-Year water tank warranty

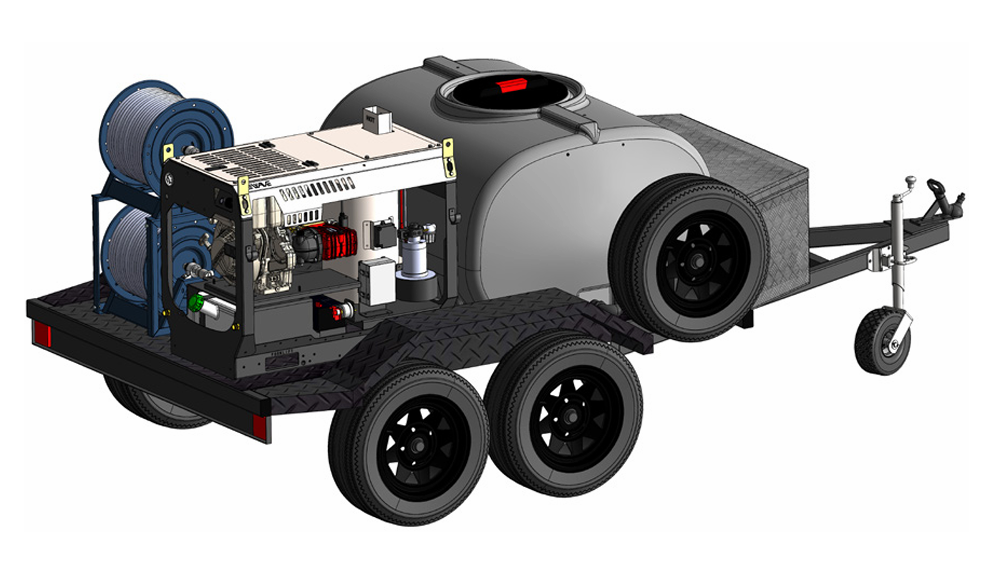

The Jetwave G2D Premium Trailer is a rugged Australian-made diesel-powered pressure cleaning trailer designed for demanding industrial and commercial environments. Available in both 3,150 PSI / 15 L/min and 4,060 PSI / 13 L/min configurations, this trailer system is built to deliver dependable cleaning performance across construction, mining, earthmoving, and hire fleet applications.

Powered by the durable Kohler KD15 440 diesel engine, the G2D Premium Trailer combines fuel efficiency, industrial reliability, and strong cleaning capability in a fully mobile package. The integrated 1000-litre onboard water tank, Apache A-frame hose reel system, and professional-grade accessories provide a complete turnkey solution ready for work immediately.

Manufactured in Australia using heavy-duty steel construction and premium running gear, the G2D Premium Trailer is engineered to withstand harsh Australian conditions while delivering long-term durability and reliable field performance.
