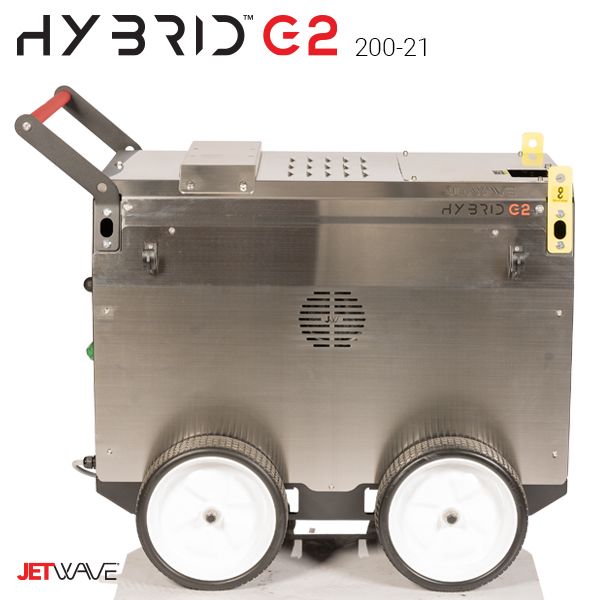

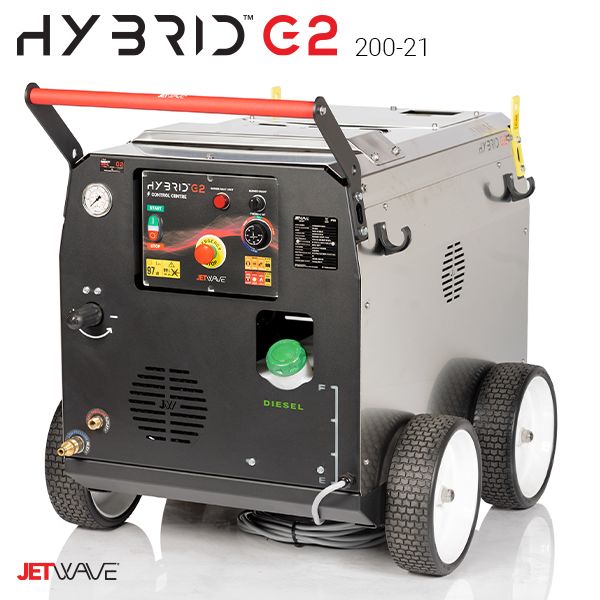

Jetwave Hybrid G2 200-21 3000PSI - 21L/min Hot Water Pressure Cleaner

Pressure Rating (PSI / Bar):
3,000 PSI (200 Bar) operating pressure

Flow Rate (L/min):
21 L/min (1,260 L/h)

Power Type:
Electric – 3 Phase, 415V, 7.5 kW (50 Hz)

Water Temperature:
Hot water – maximum outlet temperature 90°C
Maximum inlet temperature 50°C

Motor Brand and Type:
Industrial low-speed electric motor, air-cooled
7.5 kW, 3-phase, 1450 RPM with thermal cut-out protection

Pump Type:
JW® Italian premium triplex plunger pump
Brass (nickel-plated) head with ceramic pistons
Low-speed operation at 1450 RPM for extended service life

Drive System:
PL™ Powerlink coupling between motor and pump

Included Accessories:
(No standard accessories specified – optional hose reels available)

Application Suitability:
Designed for high-flow industrial cleaning including food and beverage processing, transport and logistics, agriculture, and factory washdown where continuous-duty performance is required

Duty Cycle / Usage Class (Light, medium, or heavy-duty use):
Industrial – Continuous usage (AS/NZS 4223 Class A)

Mounting / Portability:
Modular configuration options
Skid mount
Trolley kit (optional)
Wall mount with optional hose reel
Floor mount with optional hose reel

Dimensions (L x W x H) (Millimetre):
1100 x 650 x 760 mm (skid configuration)

Weight (kg):
195 kg

Safety Features:
TSPS™ Total Stop Protection System for pump and motor longevity
BCT™ sealed 12 L bypass cooling water buffer tank
Independent adjustable unloader valve
Safety valve

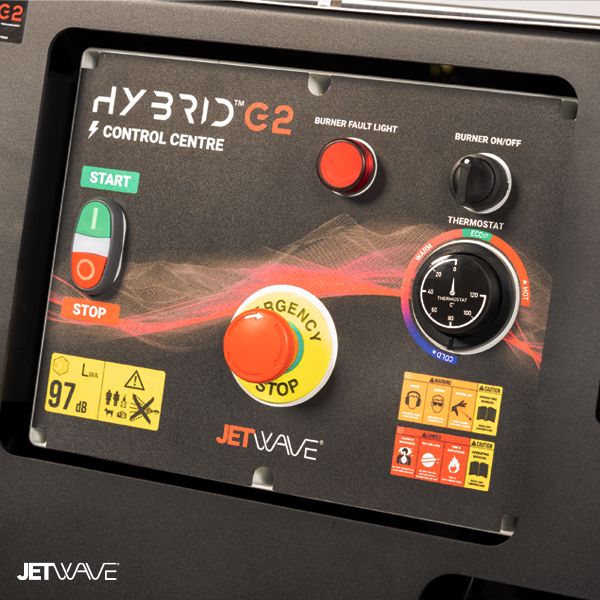

Quality-assured electrical control box with emergency stop
Delayed Timer Stop (DTS™) control
Flame detector photo eye for diesel-fired burner protection

Thermal / Burner System:
Vertical 12V diesel burner
Fuel type: Diesel
Fuel capacity: 20 L
Fuel consumption: approx. 5.74 L/hour
Heating coil: Seamless mild steel coil (3 mm wall, 400 Bar rated)
Coil housing: Stainless steel

Frame & Construction:
CNC modular galvanised steel chassis
Satin powder-coated finish with stainless steel exoskeleton (PEXO™)

Nozzle Size:
065

Warranty & Service Support:
2-Year Unit Warranty
2-Year Pump Warranty
2-Year Motor Warranty

The Jetwave Hybrid G2 200-21 is a high-flow industrial hot water pressure cleaner engineered for continuous-duty applications where productivity and reliability are critical. Delivering 3,000 PSI at a massive 21 L/min, it is ideal for large-area washdowns, food processing plants, transport fleets, agricultural equipment, and heavy industrial cleaning.

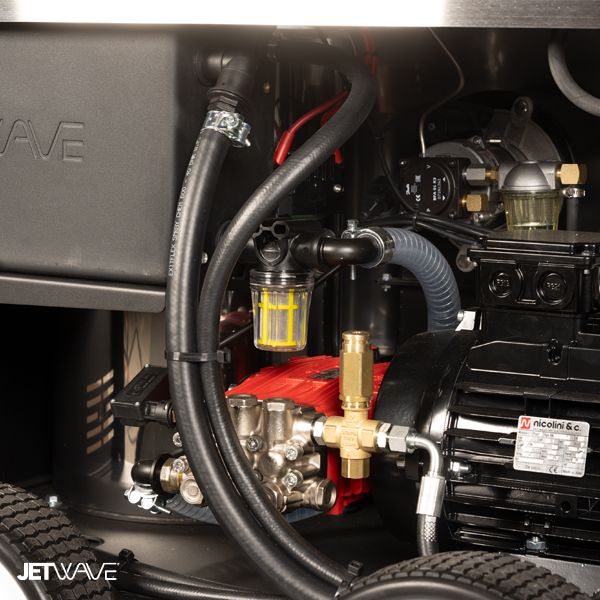

At the heart of the machine is a JW® Italian triplex plunger pump matched to a 7.5 kW low-speed industrial motor, ensuring long service life and smooth, efficient operation. The Powerlink coupling system enhances drivetrain reliability, while the sealed 12-litre bypass cooling tank protects the pump during extended bypass conditions.

Built on a galvanised steel chassis with a stainless steel exoskeleton, this unit is designed to withstand harsh industrial environments. Advanced safety systems including Total Stop Protection, thermal motor protection, diesel burner flame detection, and an emergency stop control box ensure safe, dependable operation during long cleaning cycles.

With flexible mounting options and optional hose reels, the Jetwave Hybrid G2 200-21  is a powerful, future-proof solution for operators who need high volume hot water cleaning without compromise.
