Jetwave Scorpion G2JX 275-20 4000PSI - 20L/min Water Jetting System/Drain Cleaner

Pressure Rating (PSI / Bar):
4,000 PSI (275 Bar) operating pressure

Flow Rate (L/min):
20 L/min (1,200 L/h | 5.3 GPM)

Power Type:
Petrol – JX750 industrial V-Twin engine
24 HP / 750 cc, electric key start

Water Temperature:
Cold water
Maximum inlet temperature 50°C

Motor Brand and Type:

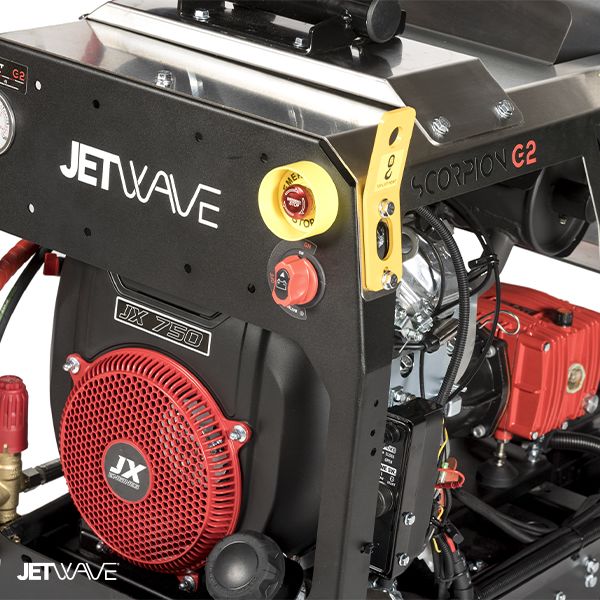

JX750 Series industrial V-Twin petrol engine
Air-cooled with low-oil shutdown protection

Pump Type:
JW® UDOR® premium Italian triplex plunger pump
Brass (nickel-plated) head with ceramic pistons
Low-speed operation at 1450 RPM for extended service life

Drive System:
Gearbox drive – 1450 RPM

Included Accessories:
J5500K LTF (low trigger force) gun with swivel and lance coupling system
JW straight stainless steel lance with snap coupling
High-end stainless steel jetting nozzle with rubber protector and snap tail
60 m x 3/8" water jetting hose
60 m Pro Rapid Style hose reel with ball valve and roller guides (HGS)
JW professional nozzle kit supplied in IP68 Pelican case
Hose whip restraint
Spare O-rings, manuals, documentation, accessory partitions, machine key

Application Suitability:
Designed for professional drain cleaning and water jetting across residential and commercial environments. Ideal for mid-tier plumbers requiring a compact yet powerful machine for daily use.

Duty Cycle / Usage Class (Light, medium, or heavy-duty use):
Professional – Daily use
AS/NZS Class A performance (no Class B RTO certification required)

Mounting / Portability:
Ultra-compact skid-mounted configuration
Integrated forklift pockets and mounting points
Designed for easy transport and tight access environments

Dimensions (L x W x H) (Millimetre):
875 x 550 x 870 mm (skid, no hose reel)

Weight (kg):
Approx. 195 kg

Safety Features:
Jetwave Safety System™ (JSS) safety valve to prevent over-pressurisation

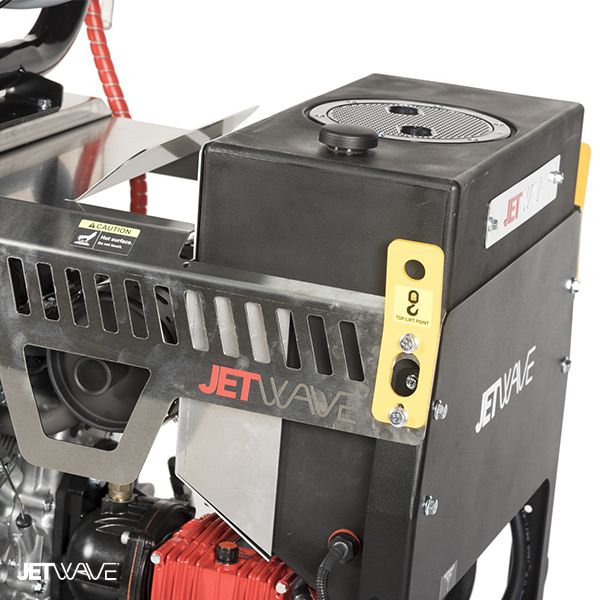

40 L oversized sealed bypass water tank with low-level cut-out for pump protection
Battery isolator and emergency stop
Low-oil engine shutdown
Hose whip restraint system

Fuel System:
Fuel type: Unleaded petrol
Fuel capacity: 25 L
Under-chassis mounted fuel tank with level gauge and front fill point
Heat-shielded for added safety

Frame & Construction:
CNC modular galvanised steel chassis
Satin powder-coated finish with stainless steel cover

Nozzle Size:
05

Warranty & Service Support:
Unit & Pump Warranty: 2 Years
Engine Warranty: 3 Years

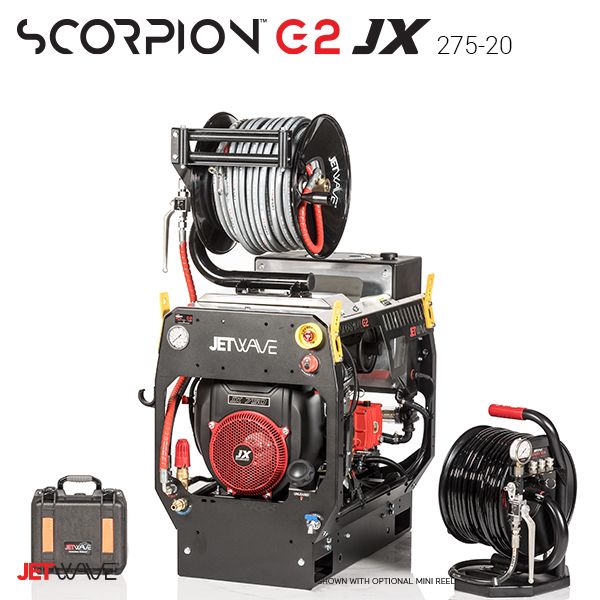

The Scorpion G2JX 275-20 is a next-generation, ultra-compact water jetting and drain cleaning system engineered for professional plumbers who demand performance, reliability, and mobility. Delivering 4,000 PSI at 20 L/min, it provides the ideal balance of pressure and flow for fast, effective drain clearing in both residential and commercial applications.

At its core is a JW® UDOR® Italian triplex plunger pump driven via a 1450 RPM gearbox, paired with a JX750 electric-start V-Twin engine. This low-speed, high-torque combination ensures long service life and consistent output. The 40-litre sealed bypass tank with low-water cut-out protects the pump during extended operation, while the Jetwave Safety System™ safeguards against over-pressurisation.

Built on a galvanised steel skid chassis with integrated forklift pockets, the Scorpion G2 is compact yet incredibly robust. Supplied with a full professional jetting accessory package, including 60 m hose and reel, stainless lance, and nozzle kit, it’s a true turnkey solution straight out of the box.

For plumbers needing a compact, powerful, and certification-friendly drain cleaner, the Scorpion G2JX 275-20 stands out as one of the most capable machines in its class.
