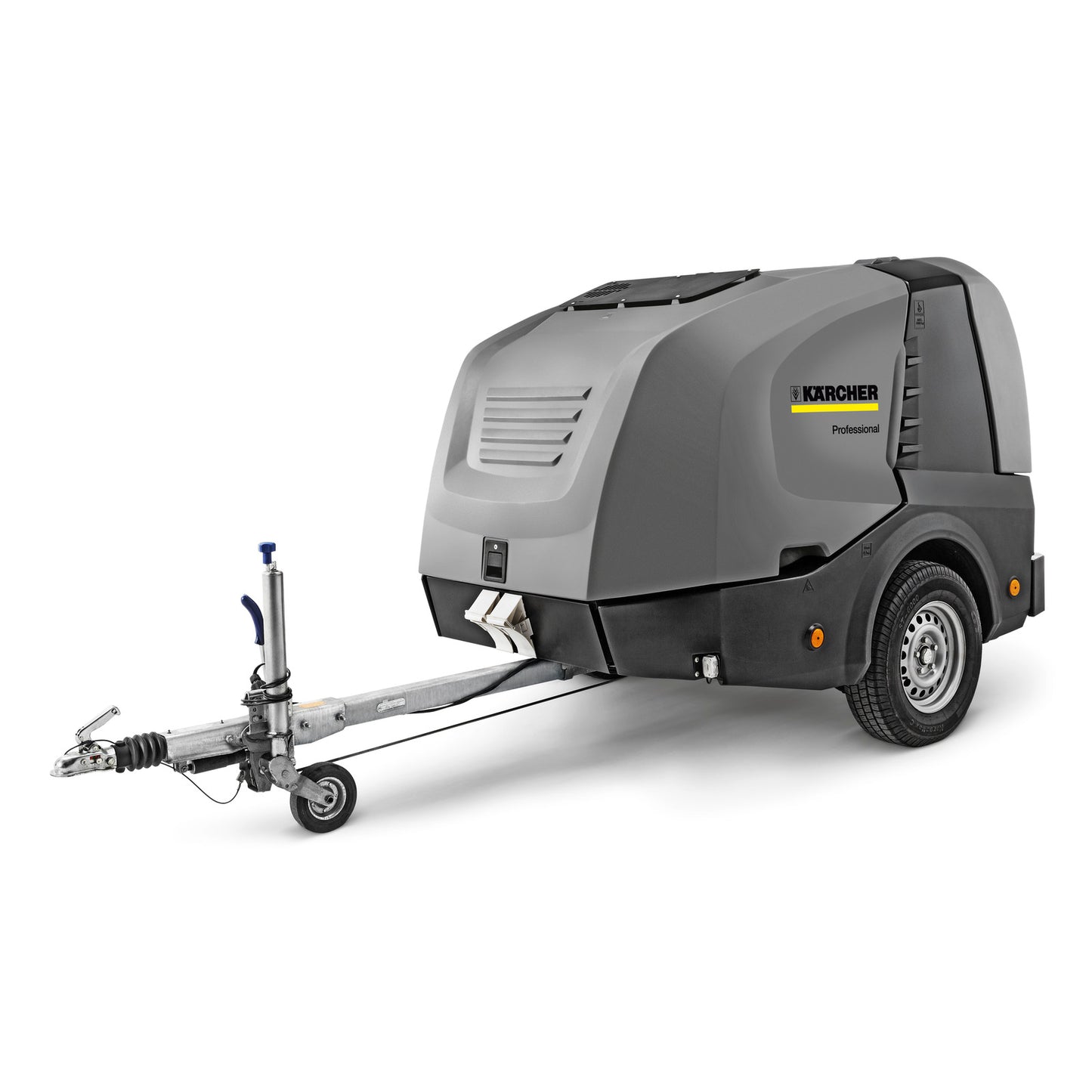

Kärcher HDS 13/20 De Tr1 Hot Water Trailer Mounted Pressure Cleaner

Pressure Rating (PSI / Bar):
2,900 PSI (200 Bar) operating pressure

Flow Rate (L/min):
15 – 21.7 L/min (900 – 1,300 L/h)

Power Type:
Diesel – Yanmar industrial engine

Water Temperature:
Hot water

Motor Brand and Type:
Yanmar diesel engine
19 kW / 26 HP

Pump Type:
Industrial-grade Kärcher high-pressure pump
Designed for heavy-duty continuous operation

Heating System:
Highly efficient, tried-and-tested burner technology
Heat recovery via waste heat from the engine
Eco!efficiency mode for reduced fuel consumption and lower operating costs
Heating oil consumption (eco mode): 8.2 kg/h

Water Supply System:
500 litre integrated water tank
Up to 30 minutes of cleaning at full water power
100 litre diesel tank for extended operation

Included Equipment & Features:
Central selector switch for simple operation
Optional dual hose reel configuration
Safe onboard storage for PPE, accessories and detergents
Water softening system to protect heating coil from calcification
Integrated frost protection mode
Advanced service software for rapid fault diagnosis
Large hood design for easy servicing access

Application Suitability:
Ideal for construction, industrial, and municipal applications requiring high mobility and independent operation without external power supply. Suitable for demanding, heavy-duty cleaning tasks in remote environments.

Duty Cycle / Usage Class:
Heavy-duty professional use

Mounting / Portability:
Trailer-mounted configuration
Available as skid or cab variant for mobile or stationary installation
Highly configurable to suit customer requirements
Exceptional mobility with fully self-sufficient operation

Dimensions (L x W x H) (Millimetre):
3646 x 1747 x 1735 mm

Safety Features:
Numerous integrated safety systems to protect components
Frost protection mode for cold environments
High-efficiency burner system
Robust trailer construction for harsh job site conditions

Warranty & Service Support:
Kärcher industrial component warranty (as per manufacturer terms)
Yanmar diesel engine warranty (as per manufacturer terms)



The HDS 13/20 De Tr1 is a high-performance diesel-powered trailer hot water pressure cleaner engineered for total independence and maximum efficiency. Delivering up to 200 Bar and 1,300 litres per hour, it provides powerful cleaning performance across construction, heavy industry, and municipal sectors.

Powered by a robust Yanmar diesel engine, this unit operates independently of external power sources. The integrated 500-litre water tank and 100-litre fuel tank allow extended cleaning periods, while Kärcher’s eco!efficiency mode reduces fuel consumption and operating costs.

With configurable options, advanced service diagnostics, frost protection, and high-quality Kärcher components throughout, the HDS 13/20 De Tr1 offers exceptional reliability, flexibility, and long-term durability for demanding professional environments.
