Karcher KM 100/100 R P Ride-On Floor and Vacuum Sweeper

Surface Area Performance:
Up to 8,000 m²/h standard
Up to 10,400 m²/h with dual side brushes for maximum large-area productivity

Working Width:
700 mm main sweeper roller
1000 mm with 1 side brush
1300 mm with 2 side brushes

Drive Type:
Petrol powered ride-on sweeper

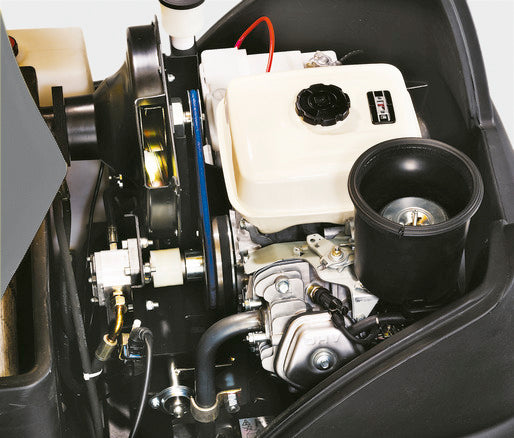

6.7 kW four-stroke engine
Single pedal control for forward and reverse travel

Working Speed:
Up to 8 km/h

Climbing Capacity:
Up to 18% ramps and gradients

Turning Circle:
Approx. 3,350 mm for manoeuvring in tighter areas

Dust Control & Filtration:
Large 6 m² polyester round filter
Automatic filter cleaning when the machine is switched off
Additional manual filter cleaning option
Tool-free filter replacement for fast maintenance
Low-dust sweeping for long, uninterrupted operating periods

Sweeping & Vacuum System:
Overthrow sweeping principle for strong debris collection
Floating main roller automatically adapts to uneven surfaces
Hydraulically driven main roller and side brush
Tool-free main roller changeover
Integrated coarse dirt flap for cans, gravel, leaves and bulky waste
Selectable sweeping/vacuum function with suction volume regulation

Container Capacity:
Dual side-removable waste containers
100 L total capacity (2 × 50 L)
Side access for safe, easy emptying

Operation & Safety:
Automatic vacuum parking brake
Automatic engine shut-off when operator leaves the seat
Lowering/raising of roller and side brush via switch
Clear, logical control layout for simple operation
Hour counter for maintenance scheduling

Manoeuvrability & Protection:

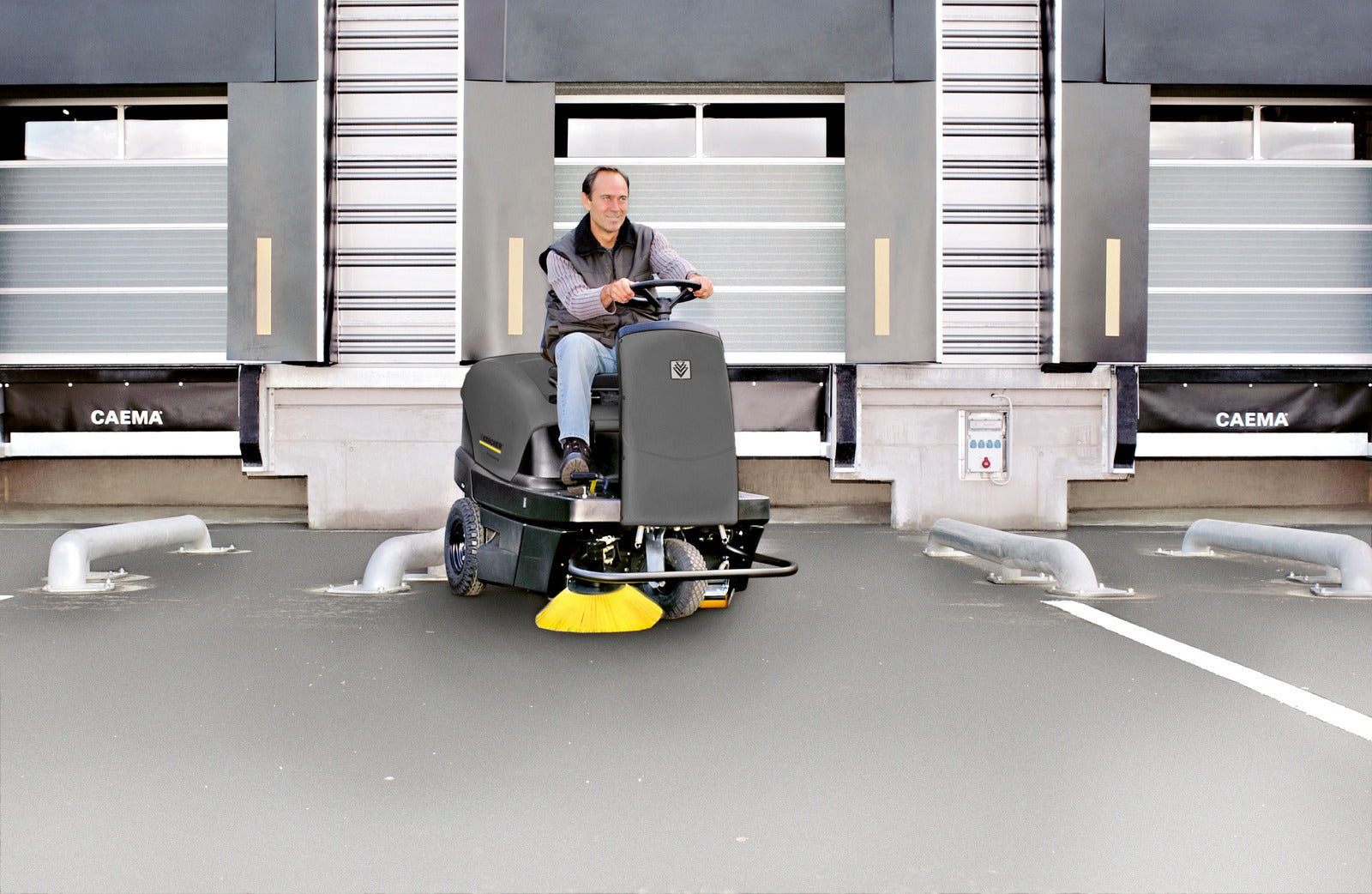

Compact, robust ride-on design for indoor and outdoor use
Impact protection bumper to protect machine and surroundings
Pneumatic wheels for smooth travel over uneven ground

Maintenance:
Tool-free removal of filter and main roller brush
Easy access to service components for reduced downtime

Dimensions (L × W × H):
2006 × 1005 × 1343 mm

Weight:
Approx. 300 kg ready to operate

Applications:
Rapid maintenance cleaning of car parks and outdoor paved areas
Warehouses and production facilities
Retail centres and public buildings
Workshops, schools and service stations
Building service and facility management contractors

Includes:
• Polyester round dust filter
• Floating main roller brush

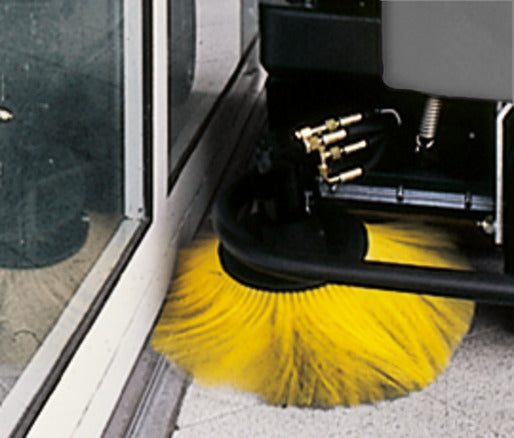

• Adjustable side brush
• Dual 50 L removable waste containers (100 L total)
• Automatic and manual filter cleaning
• Coarse dirt flap for bulky debris
• Suction volume regulation
• Forward and reverse traction drive
• Pneumatic wheels
• Hour counter

This high-performance petrol ride-on sweeper is built for fast, efficient cleaning of large indoor and outdoor areas where maximum productivity is essential. The powerful four-stroke engine and hydraulic brush drive deliver strong sweeping performance, while the overthrow principle throws debris directly into the twin side-removable containers for quick, clean disposal.

A large round filter with automatic cleaning maintains low-dust operation over long working periods, making it ideal for car parks, warehouses and public facilities. The floating main brush follows uneven ground automatically, ensuring residue-free results without manual adjustment, and both the brush and filter can be changed without tools to minimise downtime.

With single-pedal drive control, automatic safety shut-off and robust impact protection, this ride-on sweeper provides reliable, easy-to-use performance for demanding commercial and industrial cleaning tasks.
