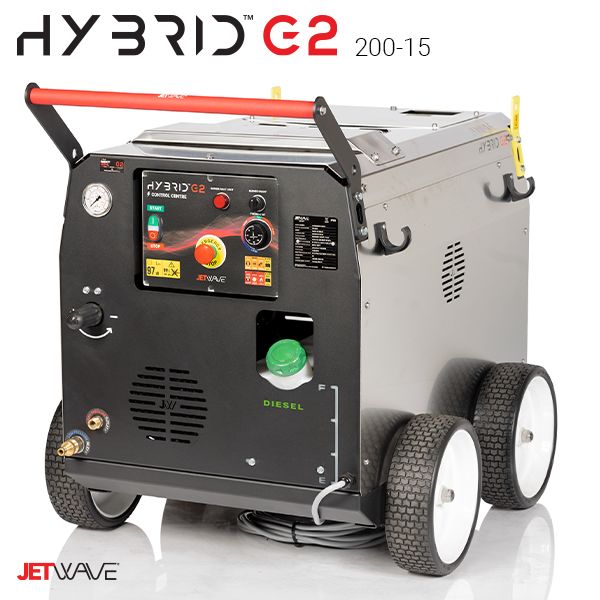

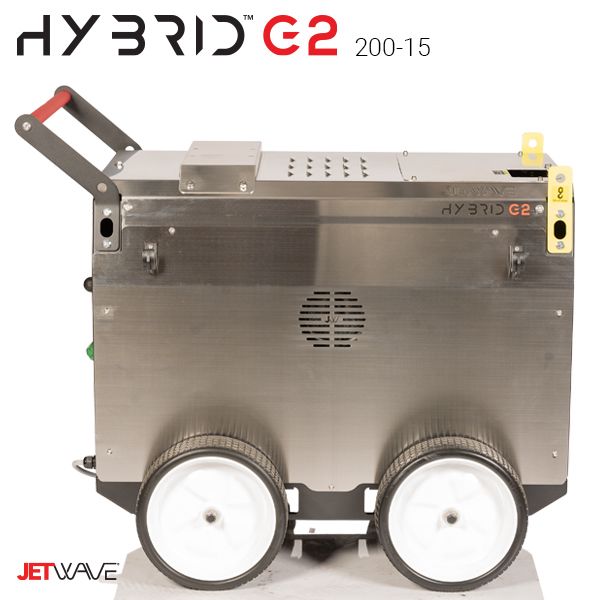

Jetwave Hybrid G2 200-15 3000psi - 15L/min Hot Water Pressure Cleaner

Pressure Rating (PSI / Bar):
3,000 PSI (200 Bar) operating pressure

Flow Rate (L/min):
15 L/min (900 L/h)

Power Type:
Electric – 3 Phase, 415V, 5.5 kW (50 Hz)

Water Temperature:
Hot water – maximum outlet temperature 90°C
Maximum inlet temperature 50°C

Motor Brand and Type:
Industrial low-speed electric motor, air-cooled
5.5 kW, 3-phase, 1450 RPM with thermal cut-out protection

Pump Type:
JW® Italian premium triplex plunger pump
Brass (nickel-plated) head with ceramic pistons
Low-speed operation at 1450 RPM for extended service life

Drive System:
PL™ Powerlink coupling between motor and pump

Included Accessories:
(No standard accessories specified – optional hose reels available)

Application Suitability:
Designed for industrial continuous-use applications including food and beverage cleaning, transportation and logistics, agriculture, and factory washdown environments

Duty Cycle / Usage Class (Light, medium, or heavy-duty use):
Industrial – Continuous usage (AS/NZS 4223 Class A)

Mounting / Portability:
Modular design allowing multiple configurations
Skid mount
Trolley kit (optional)
Wall mount with optional hose reel
Floor mount with optional hose reel

Dimensions (L x W x H) (Millimetre):
1100 x 650 x 760 mm (skid configuration)

Weight (kg):
195 kg

Safety Features:
TSPS™ Total Stop Protection System for pump and motor longevity
BCT™ bypass cooling water buffer tank (12 L sealed onboard tank)
Independent adjustable unloader valve
Safety valve

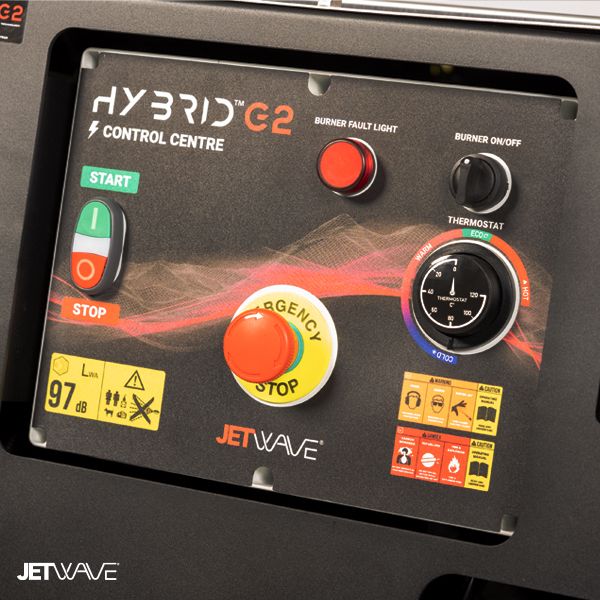

Quality-assured electrical control box with emergency stop
Delayed Timer Stop (DTS™) control
Flame detector photo eye for diesel-fired burner protection

Thermal / Burner System:
Vertical 12V diesel burner
Fuel type: Diesel
Fuel capacity: 20 L
Fuel consumption: approx. 5.74 L/hour
Heating coil: Seamless mild steel coil (3 mm wall, 400 Bar rated)
Coil housing: Stainless steel

Frame & Construction:
CNC modular galvanised steel chassis
Satin powder-coated finish with stainless steel exoskeleton (PEXO™)

Nozzle Size:
045

Warranty & Service Support:
2-Year Unit Warranty
2-Year Pump Warranty
2-Year Motor Warranty

The Jetwave Hybrid G2 200-15 is a heavy-duty industrial hot water pressure cleaner engineered for continuous-use environments where reliability, safety, and performance are critical. Delivering 3,000 PSI at 15 L/min, it provides the ideal balance of pressure and flow for demanding washdown tasks across food processing, transport fleets, agriculture, and factory maintenance.

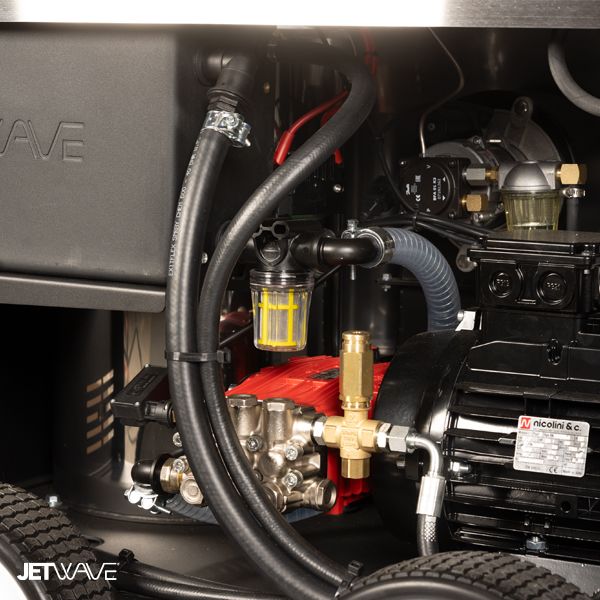

At its core is a JW® Italian triplex plunger pump paired with a low-speed 1450 RPM industrial motor, ensuring long service life and reduced wear. The Powerlink coupling system enhances drivetrain reliability, while the sealed 12-litre bypass cooling tank protects the pump during extended bypass operation.

Built on a galvanised steel chassis with stainless steel exoskeleton, the unit is designed for harsh industrial environments. Advanced safety systems including Total Stop Protection, thermal cut-out, diesel burner flame detection, and an emergency stop control box provide peace of mind during continuous operation.

With multiple mounting options and optional hose reels, the Jetwave Hybrid G2 200-15 is a versatile, future-proof solution for industrial users who demand durability, efficiency, and long-term reliability.
