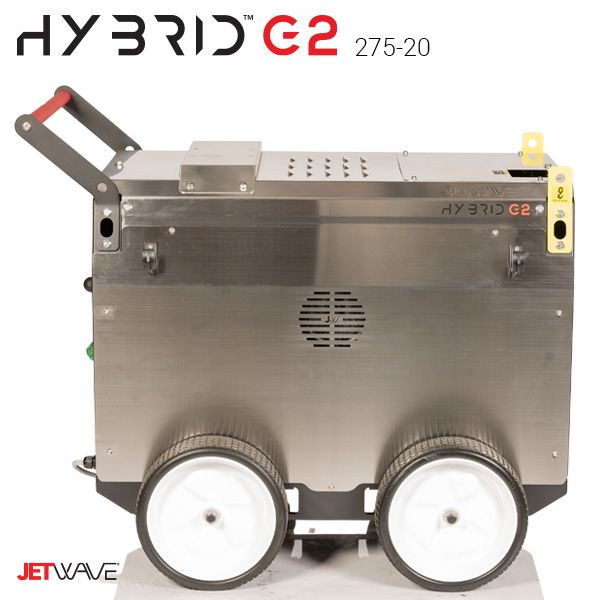

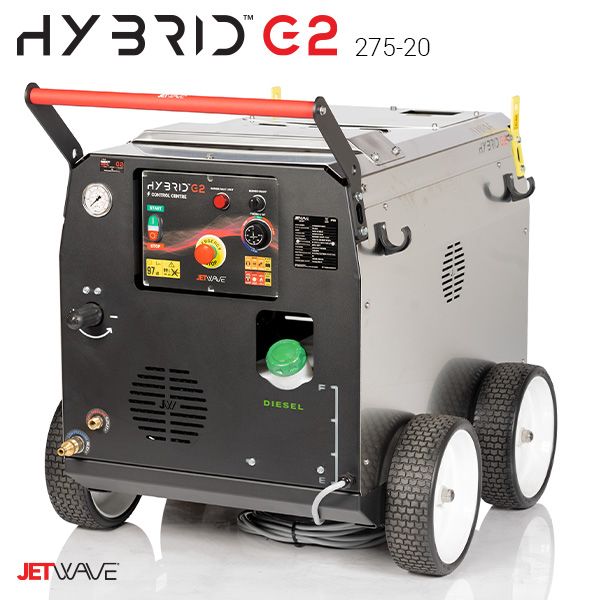

Jetwave Hybrid G2 275-20 Hot Water Pressure Cleaner

Pressure Rating (PSI / Bar):
4,000 PSI (275 Bar) operating pressure

Flow Rate (L/min):
20 L/min (1,200 L/h)

Power Type:
Electric – 3 Phase / 415 V / 11 kW

Water Temperature:
Hot water 122°C
Maximum inlet temperature 50°C

Motor Brand and Type:
Industrial low-speed induction motor
Air cooled with thermal cut-out protection
Direct drive via PowerLink coupling

Pump Type:

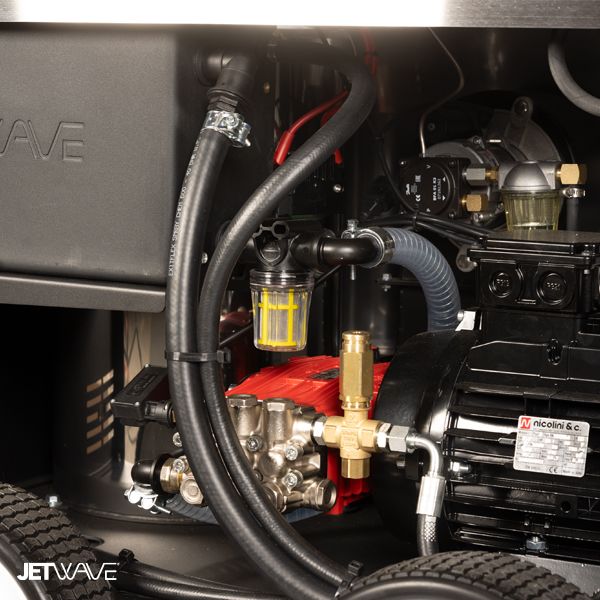

JW® Italian triplex plunger pump
Brass pump head with ceramic pistons
Operating speed: 1450 RPM

Drive System:
PowerLink coupling direct from motor to pump for continuous industrial operation

Included Accessories:
10 m non-marking double wire braid high-pressure hose with M22 couplings
JW J5500K low trigger force gun with swivel and lance coupling system
JW straight stainless steel lance with insulated grip
JetBlade nozzle system with plastic nozzle case and spare O-rings

Application Suitability:
Designed for demanding industrial cleaning tasks including food processing, transport fleets, manufacturing facilities, and heavy equipment cleaning.

Duty Cycle / Usage Class:
Industrial – Continuous use
AS/NZS Class A (4,200 Bar/Litres)

Frame & Construction:
CNC modular galvanised steel chassis

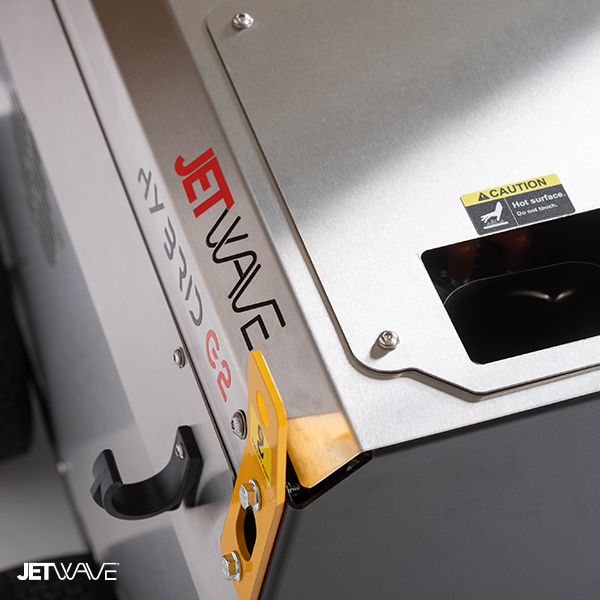

Satin powder coat finish with stainless steel cover

Bypass & Pump Protection:
Sealed 12 L onboard bypass water cooling tank for pump protection
Independent adjustable unloader valve
Integrated safety valve

Electrical & Control Features:

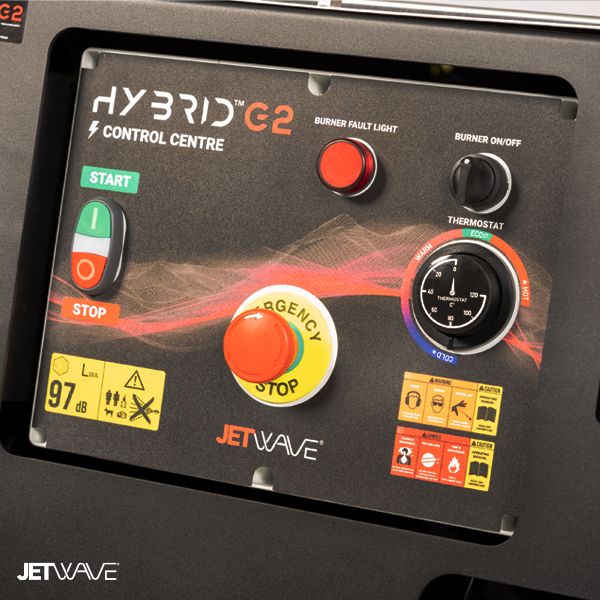

Low-voltage 24 V electrical control box
Emergency stop for increased operator safety
Delayed Timer Stop (DTS™) control system
8 m power cable

Heating System:
Vertical diesel burner system
Mild steel seamless coil housing (3 mm wall – 400 Bar rated)
Stainless steel burner housing
Fuel consumption: approx. 5.74 L/h
Diesel tank capacity: 20 L

Nozzle Size:
05

Dimensions (L x W x H) (Millimetre):
1100 x 650 x 760 mm

Weight (kg):
195 kg

Safety Features:
Thermal motor protection
Emergency stop system
Safety valve and adjustable unloader
Flame detector cell for burner safety
Sealed bypass cooling tank for pump protection

Warranty & Service Support:
2-Year unit and pump warranty

The Jetwave Hybrid G2 275-20 is a powerful industrial hot water pressure cleaner delivering 4,000 PSI at 20 L/min, designed for continuous heavy-duty use. Powered by an 11 kW three-phase electric motor and paired with a JW Italian triplex plunger pump, it provides reliable performance and long service life even under demanding operating conditions.

A 12-litre onboard bypass cooling tank protects the pump during extended use, while the PowerLink direct coupling system ensures smooth power transfer and reduced wear. The integrated diesel burner and stainless steel coil housing provide efficient hot water cleaning for stubborn grease, oil, and industrial contamination.

Built on a modular galvanised steel chassis with stainless steel cover, the Hybrid G2 275-20 offers durability, safety, and consistent cleaning performance for professional operators.
