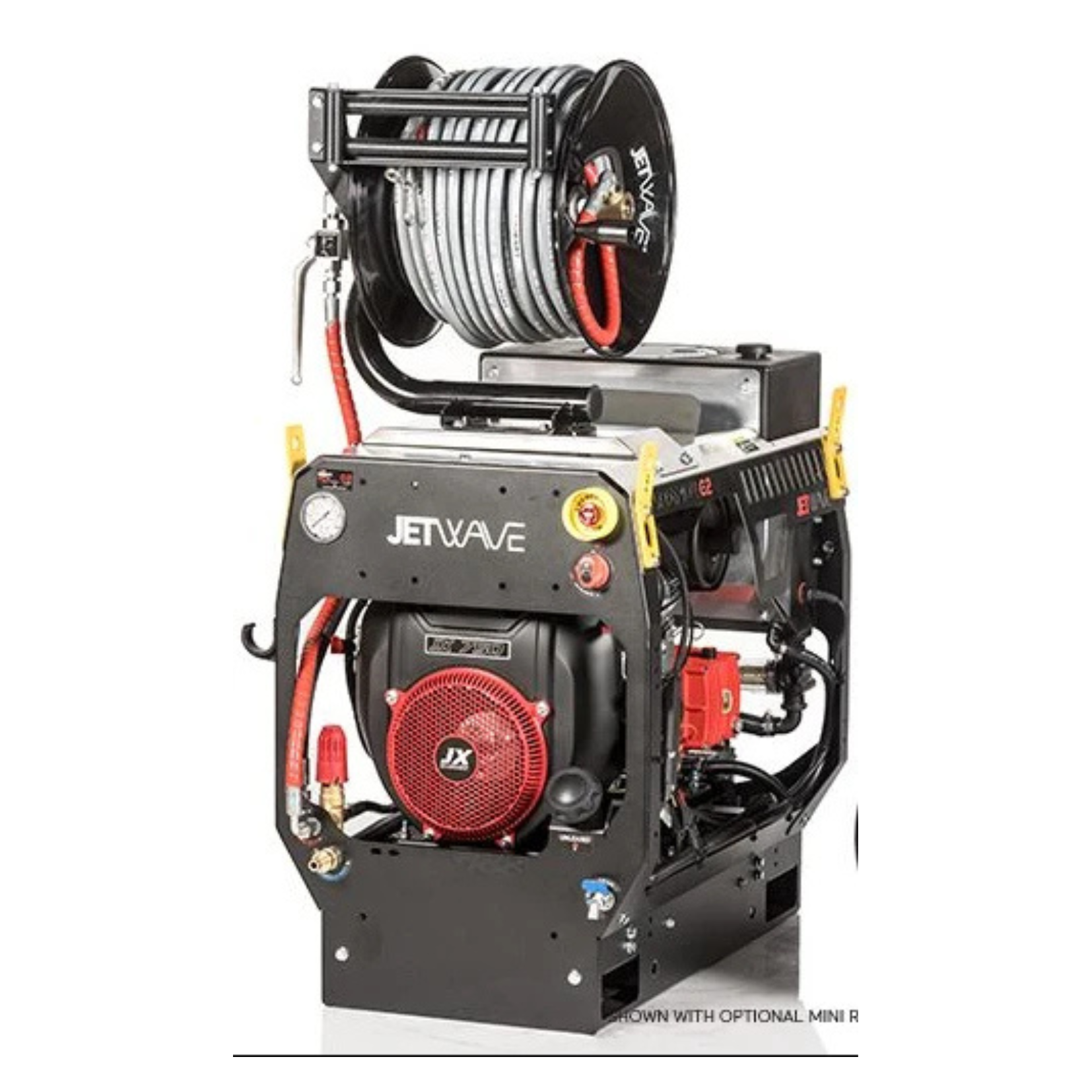

Jetwave Scorpion G2JX 350-23 Water Jetting System/Drain Cleaner

Pressure Rating (PSI / Bar):
5075 PSI (350 Bar) operating pressure

Flow Rate (L/min):
23 L/min

Power Type:
Petrol – JX750 industrial V-Twin engine
24 HP / 750 cc, electric key start

Water Temperature:
Cold water
Maximum inlet temperature 50°C

Motor Brand and Type:
JX750 Series industrial V-Twin petrol engine
Air-cooled with low-oil shutdown protection

Pump Type:
JW® UDOR® premium Italian triplex plunger pump
Brass (nickel-plated) head with ceramic pistons
Low-speed operation at 1450 RPM for extended service life

Drive System:
Gearbox drive – 1450 RPM

Included Accessories:
J5500K LTF (low trigger force) gun with swivel and lance coupling system
JW straight stainless steel lance with snap coupling
High-end stainless steel jetting nozzle with rubber protector and snap tail
60 m x 3/8" water jetting hose
60 m Pro Rapid Style hose reel with ball valve and roller guides (HGS)
JW professional nozzle kit supplied in IP68 Pelican case
Hose whip restraint
Spare O-rings, manuals, documentation, accessory partitions, machine key

Application Suitability:
Designed for professional drain cleaning and water jetting across residential and commercial environments. Ideal for mid-tier plumbers requiring a compact yet powerful machine for daily use.

Duty Cycle / Usage Class (Light, medium, or heavy-duty use):
Professional – Daily use
AS/NZS Class A performance (no Class B RTO certification required)

Mounting / Portability:
Ultra-compact skid-mounted configuration
Integrated forklift pockets and mounting points
Designed for easy transport and tight access environments

Dimensions (L x W x H) (Millimetre):
875 x 550 x 870 mm (skid, no hose reel)

Weight (kg):
Approx. 195 kg

Safety Features:
Jetwave Safety System™ (JSS) safety valve to prevent over-pressurisation
40 L oversized sealed bypass water tank with low-level cut-out for pump protection
Battery isolator and emergency stop
Low-oil engine shutdown
Hose whip restraint system

Fuel System:
Fuel type: Unleaded petrol
Fuel capacity: 25 L
Under-chassis mounted fuel tank with level gauge and front fill point
Heat-shielded for added safety

Frame & Construction:
CNC modular galvanised steel chassis
Satin powder-coated finish with stainless steel cover

Nozzle Size:
05

Warranty & Service Support:
Unit & Pump Warranty: 2 Years
Engine Warranty: 3 Years

The Jetwave Scorpion G2JX 350-23 is a professional-grade water jetter engineered for plumbers and drain cleaning contractors who need serious performance in a compact, transportable package. Producing an impressive 350 Bar (5,075 PSI) operating pressure and 23 litres per minute flow, this powerful drain jetter quickly clears grease, tree roots, sludge, scale, and stubborn blockages from residential, commercial and industrial pipework.

Powered by a reliable 24 HP JX750 industrial V-Twin petrol engine with electric key start, the Scorpion G2 delivers dependable performance for demanding daily use. Its premium JW® UDOR® Italian triplex plunger pump operates at a low 1450 RPM, providing greater efficiency, quieter operation, longer pump life and reduced maintenance compared to high-speed alternatives.

Designed with professional plumbers in mind, the ultra-compact skid-mounted chassis features integrated forklift pockets and multiple mounting points, making it ideal for installation in utes, trailers and service vehicles where space is at a premium. The durable galvanised steel frame, stainless steel covers and powder-coated finish are built to withstand Australia's harsh working conditions.

Safety and reliability are at the forefront of the Scorpion G2's design. The Jetwave Safety System™ (JSS) protects against over-pressurisation, while the oversized 40-litre sealed bypass water tank with low-water cut-out helps protect the pump during extended operation. Additional features including an emergency stop, battery isolator, low-oil shutdown and hose whip restraint system provide added operator safety on every job.

Supplied as a complete turnkey package, the Scorpion G2JX 350-23 includes a 60-metre professional jetting hose, rapid hose reel, stainless steel lance, premium jetting nozzles, Pelican storage case and professional accessories, allowing you to get to work immediately.

Ideal Applications

The Jetwave Scorpion G2JX 350-23 is ideal for:

• Professional plumbing contractors
• Drain and sewer cleaning
• Residential blocked drains
• Commercial drain maintenance
• Stormwater pipe cleaning
• Grease trap cleaning
• Root intrusion removal
• Property maintenance contractors
• Local councils and utilities
• Facility maintenance companies

Its combination of 5,075 PSI pressure and 23 L/min flow provides the ideal balance for efficient drain cleaning, delivering outstanding flushing performance while maintaining excellent hose control in a wide range of pipe sizes.

Why Buy From Hytec Services?

With over 40 years of industry experience, Hytec Services supplies premium Jetwave water jetters backed by expert advice, ongoing servicing and genuine spare parts. We support professional plumbers throughout the Illawarra, South Coast, Southern Highlands, Macarthur, Southern Sydney and surrounding NSW regions, helping businesses invest in reliable equipment that delivers long-term performance.

Whether you're upgrading your existing drain jetter or expanding your fleet, the Jetwave Scorpion G2JX 350-23 offers exceptional power, durability and reliability for professional drain cleaning every day.
