Kärcher HDS 13/20 De Tr1 Hot Water Trailer Mounted Pressure Cleaner

Pressure Rating (PSI / Bar):
2,900 PSI (200 Bar) operating pressure

Flow Rate (L/min):
15 – 21.7 L/min (900 – 1,300 L/h)

Power Type:
Diesel – Yanmar industrial engine

Water Temperature:
Hot water

Motor Brand and Type:
Yanmar diesel engine
19 kW / 26 HP

Pump Type:
Industrial-grade Kärcher high-pressure pump
Designed for heavy-duty continuous operation

Heating System:
Highly efficient, tried-and-tested burner technology
Heat recovery via waste heat from the engine
Eco!efficiency mode for reduced fuel consumption and lower operating costs
Heating oil consumption (eco mode): 8.2 kg/h

Water Supply System:
500 litre integrated water tank
Up to 30 minutes of cleaning at full water power
100 litre diesel tank for extended operation

Included Equipment & Features:
Central selector switch for simple operation
Optional dual hose reel configuration
Safe onboard storage for PPE, accessories and detergents
Water softening system to protect heating coil from calcification
Integrated frost protection mode
Advanced service software for rapid fault diagnosis
Large hood design for easy servicing access

Application Suitability:
Ideal for construction, industrial, and municipal applications requiring high mobility and independent operation without external power supply. Suitable for demanding, heavy-duty cleaning tasks in remote environments.

Duty Cycle / Usage Class:
Heavy-duty professional use

Mounting / Portability:
Trailer-mounted configuration
Available as skid or cab variant for mobile or stationary installation
Highly configurable to suit customer requirements
Exceptional mobility with fully self-sufficient operation

Dimensions (L x W x H) (Millimetre):
3646 x 1747 x 1735 mm

Safety Features:
Numerous integrated safety systems to protect components
Frost protection mode for cold environments
High-efficiency burner system
Robust trailer construction for harsh job site conditions

Warranty & Service Support:
Kärcher industrial component warranty (as per manufacturer terms)
Yanmar diesel engine warranty (as per manufacturer terms)

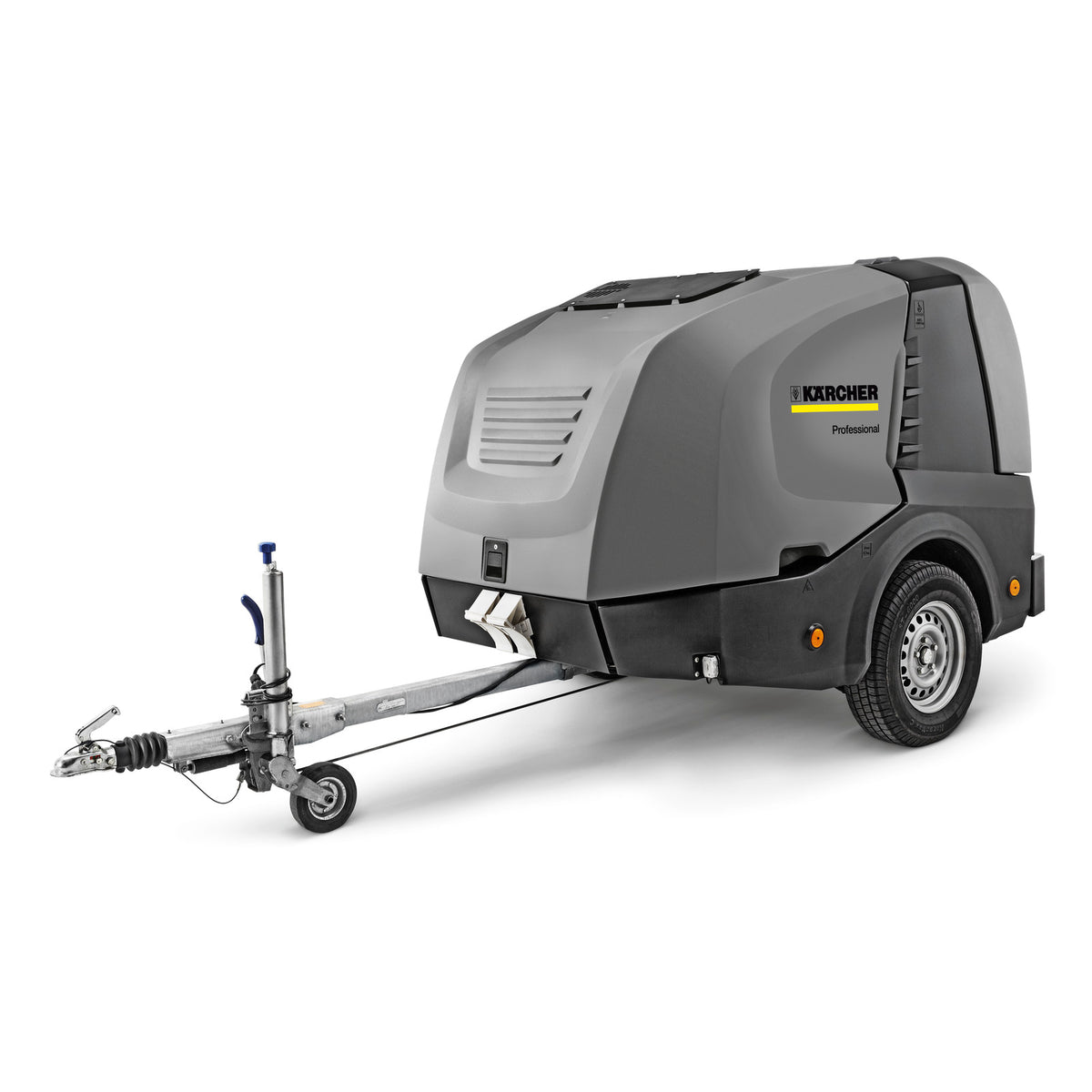

The Kärcher HDS 13/20 De Tr1 is a premium diesel-powered hot water pressure cleaning trailer engineered for businesses that require complete independence from mains power and water supplies. Delivering up to 2,900 PSI (200 Bar) operating pressure and an adjustable flow rate of 15 to 21.7 litres per minute, this self-contained cleaning system is designed for demanding industrial, construction and municipal applications where reliable hot water cleaning is essential.

Powered by a proven 26 HP Yanmar industrial diesel engine, the HDS 13/20 De Tr1 combines outstanding cleaning performance with exceptional fuel efficiency. Because the unit operates independently of external power, it is ideal for remote worksites, civil construction projects, mining operations, heavy equipment maintenance and large fleet washdown where mobility is critical.

At the heart of the machine is Kärcher's industrial high-pressure pump, engineered for continuous professional operation. Combined with Kärcher's highly efficient burner system, the HDS 13/20 De Tr1 produces powerful hot water capable of breaking down grease, oil, fuel residue, heavy mud and stubborn industrial contamination far more effectively than cold water alone.

One of the key advantages of this machine is its fully self-sufficient design. The integrated 500-litre water tank provides up to 30 minutes of cleaning at maximum water output, while the 100-litre diesel fuel tank allows extended operating times between refuelling. This makes the HDS 13/20 De Tr1 an ideal solution for locations where water and electricity are unavailable or impractical.

Kärcher's innovative Eco!efficiency mode helps reduce fuel consumption and operating costs by recovering waste heat from the diesel engine to assist with water heating. This proven technology not only improves efficiency but also reduces emissions while maintaining outstanding cleaning performance throughout the working day.

Designed for harsh Australian environments, the trailer incorporates a range of professional features including a built-in water softening system to protect the heating coil, integrated frost protection, advanced onboard diagnostics for simplified servicing and a large service hood that provides easy access to key components. Safe onboard storage for personal protective equipment, detergents and accessories further improves convenience for operators working in the field.

Ideal Applications

The Kärcher HDS 13/20 De Tr1 is ideal for:

• Construction sites
• Civil contractors
• Mining operations
• Local councils
• Heavy machinery cleaning
• Transport and logistics fleets
• Industrial maintenance
• Agriculture
• Waste and recycling facilities
• Quarries
• Marine and port facilities
• Remote work sites

Its combination of hot water cleaning, diesel-powered independence, high water flow and fully integrated onboard tanks makes it one of Kärcher's most capable mobile pressure cleaning systems for professional users.

Why Buy From Hytec Services?

For more than 40 years, Hytec Services has supplied and serviced professional Kärcher pressure cleaning equipment across NSW. As an authorised Kärcher dealer, we provide expert product advice, installation assistance, genuine spare parts and factory-trained servicing to help maximise the lifespan and performance of your investment.

We proudly supply Kärcher hot water pressure cleaners throughout the Illawarra, South Coast, Southern Highlands, Macarthur, Southern Sydney and surrounding NSW regions, offering local support backed by decades of industry experience.

If you're looking for a fully self-contained diesel hot water pressure cleaning trailer capable of delivering exceptional cleaning performance in remote or demanding environments, the Kärcher HDS 13/20 De Tr1 is one of the most advanced mobile cleaning solutions available.
