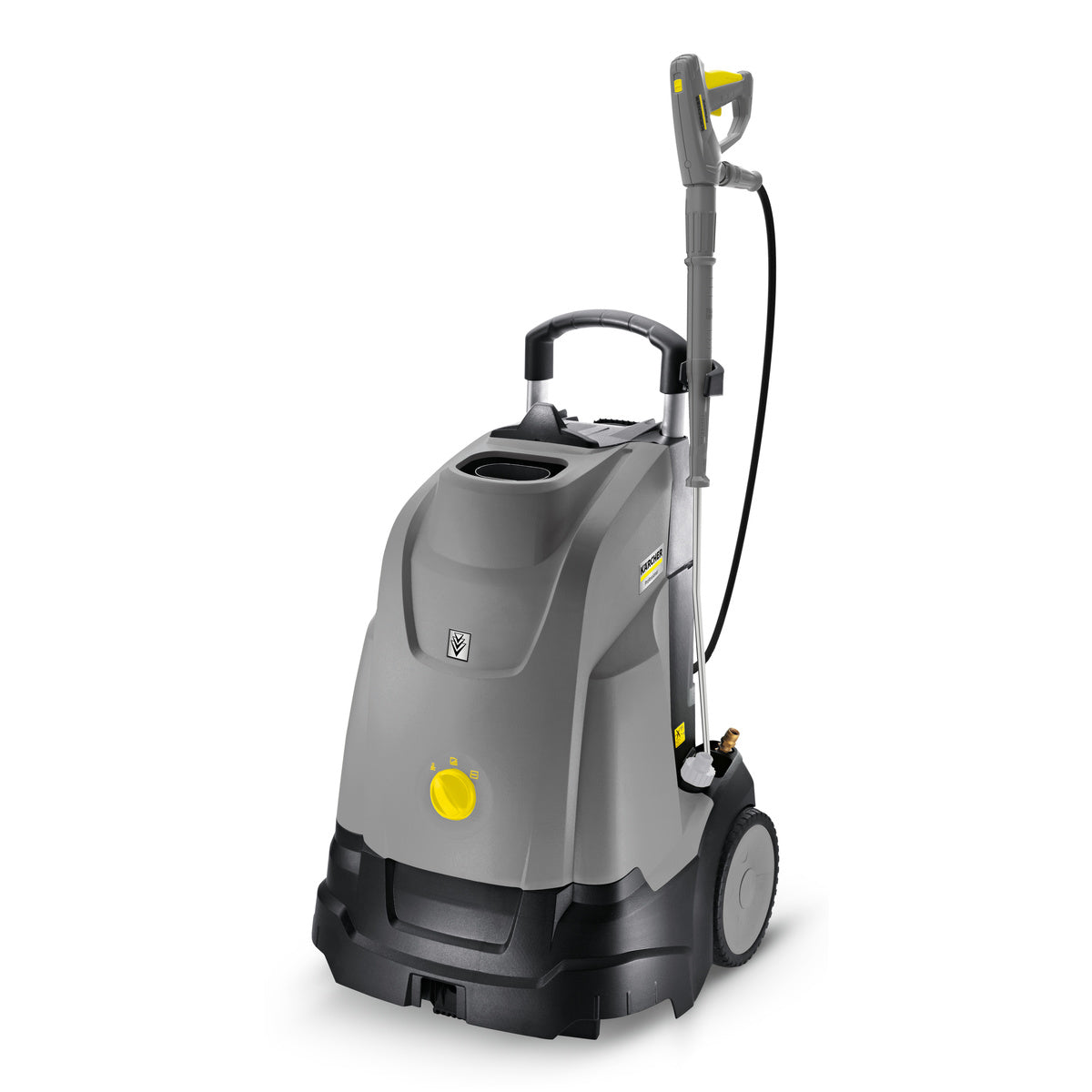

Karcher HDS 5/11U 1595 PSI - 7.5L/min Hot Water Pressure Cleaner

Pressure Rating (PSI / Bar):
1,595 PSI (110 Bar) operating pressure

Flow Rate (L/min):
7.5 L/min (450 L/h)

Power Type:
Single Phase / 230 Volt / 50 Hertz

Water Temperature:
Hot water – max output temperature 80°C

Motor Brand and Type:
2.2 kW air-cooled two-pole electric motor

Pump Type:
Three-piston axial high-pressure pump with hardened stainless steel pistons and brass cylinder head

Included Accessories:

Spray gun: EASY!Force Advanced

High-pressure hose length: 10 Metre

Spray lance: 840 Millimetre

Application Suitability:
Ideal for light-to-medium-duty industrial and commercial hot water cleaning where portability, storage efficiency, and durability are required

Duty Cycle / Usage Class:
Medium-duty use

Mounting / Portability:
Upright design with large wheels and ergonomic push/pull handle for excellent mobility
Compact frame fits vertically in standard vehicles and stores easily

Dimensions & Weight:
618 mm (L) x 618 mm (W) x 994 mm (H)

Weight: 68.88 kg (77.1 kg incl. packaging)

Safety Features:
Automatic pressure switch to shut down the motor when the trigger is closed
Fuel tank with 6.5 L capacity
Fuel oil consumption: 2.4 kg/h at full load
Time-proven Karcher boiler technology with high efficiency and compliance with emission regulations

Warranty & Service Support:
2 years

The Kärcher Upright-Class hot water high-pressure cleaner combines power, efficiency, and portability in a uniquely compact design. Delivering 1,595 PSI of working pressure and up to 80°C of water temperature, it offers exceptional cleaning results in commercial and light industrial settings.

Its three-piston axial pump with stainless steel pistons and a brass cylinder head ensures durability, while the 2.2 kW electric motor powers the high-pressure pump, burner fan, and oil pump in a tightly integrated and reliable drive module. An automatic pressure switch protects components and prolongs service life by shutting down the unit when the trigger is released.

This machine excels in mobility thanks to large-diameter wheels and an ergonomic push/pull handle, making it easy to move across challenging surfaces. Its horizontal layout enables vertical transportation in vehicles and space-saving storage when not in use.

Ideal for users requiring a compact, powerful hot water pressure cleaner, this unit is backed by Kärcher’s long-standing engineering and performance reputation.
